The MT-35 Tape-and-Reel System is engineered for reliable, continuous-duty packaging of surface mount components in an industrial environment. The system handles a wide range of tape sizes and accommodates both heat sealable and pressure-sensitive (PSA) tapes. Other advanced features include micro-stepper controlled tape drive, high-reliability optical sensors, touch screen operator panel, independent “floating” sealing shoes, fault condition display, and tool-less cover tape changeover.

Easy set-up, combined with rugged industrial-grade construction make the MT-35 the perfect solution for high-mix, small lot packaging situations in addition to meeting high-level production requirements.

The operator loads components into tape by hand or with the built-in vacuum wand while utilizing the footswitch to smoothly advance the tape. Optical sensing counts the parts to your pre-set value and ensures that every pocket in your production run is full.

The MT-35 Hi-Res micro stepper tape drive can operate in either continuous feed mode for standard manual loading — or in pocket indexing mode to accommodate a vision inspection camera for checking package orientation or other features.

Download Product Brochure

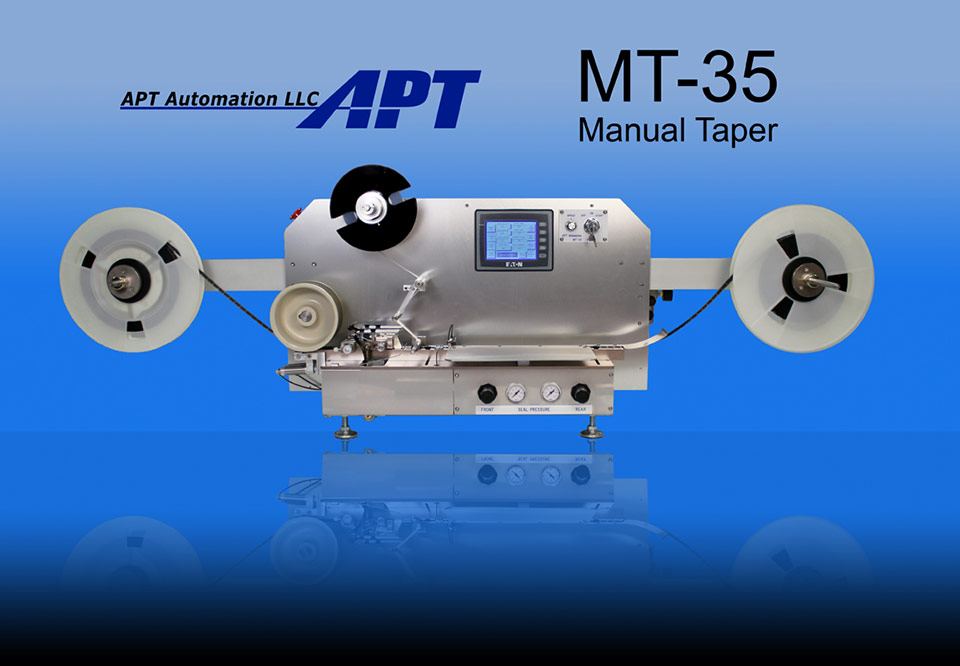

MT-35 Manual Tape and Reel Machine
MT-35 Manual Tape and Reel Machine

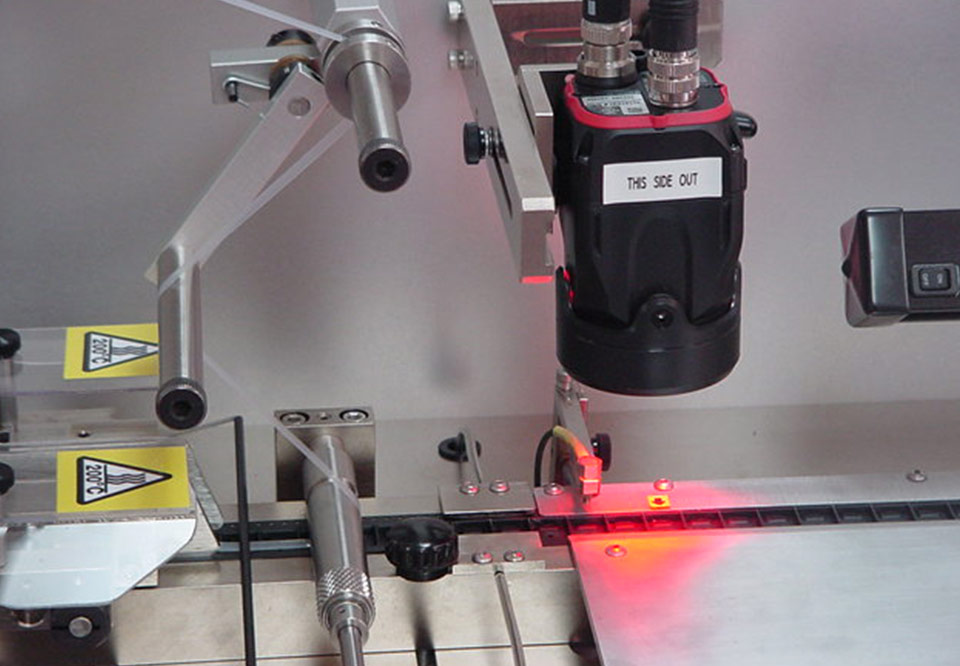

Inspection camera on MT-35
Inspection camera on MT-35

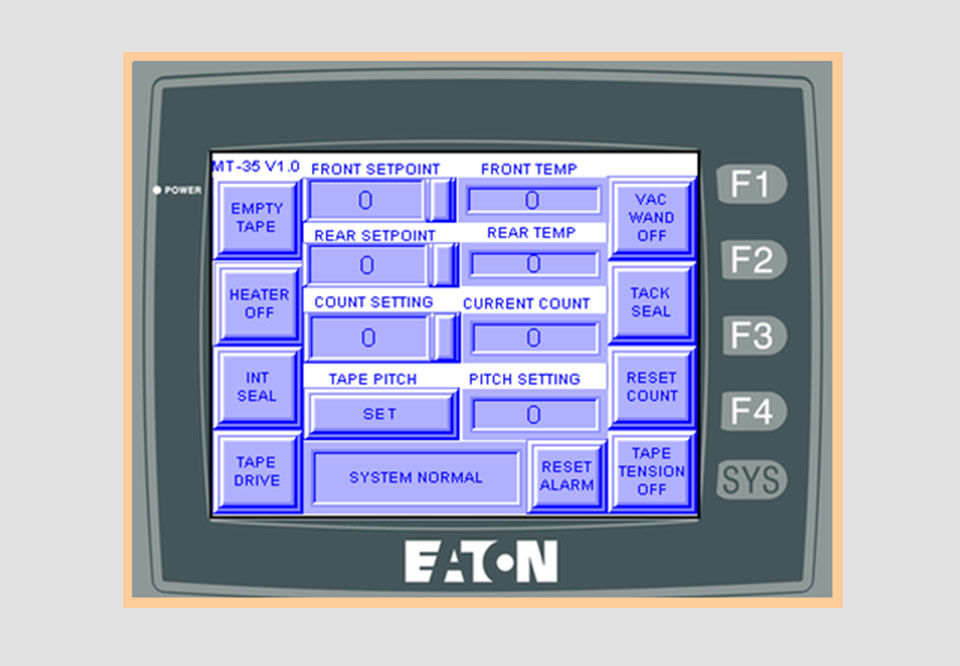

Touch screen HMI
Touch screen HMI

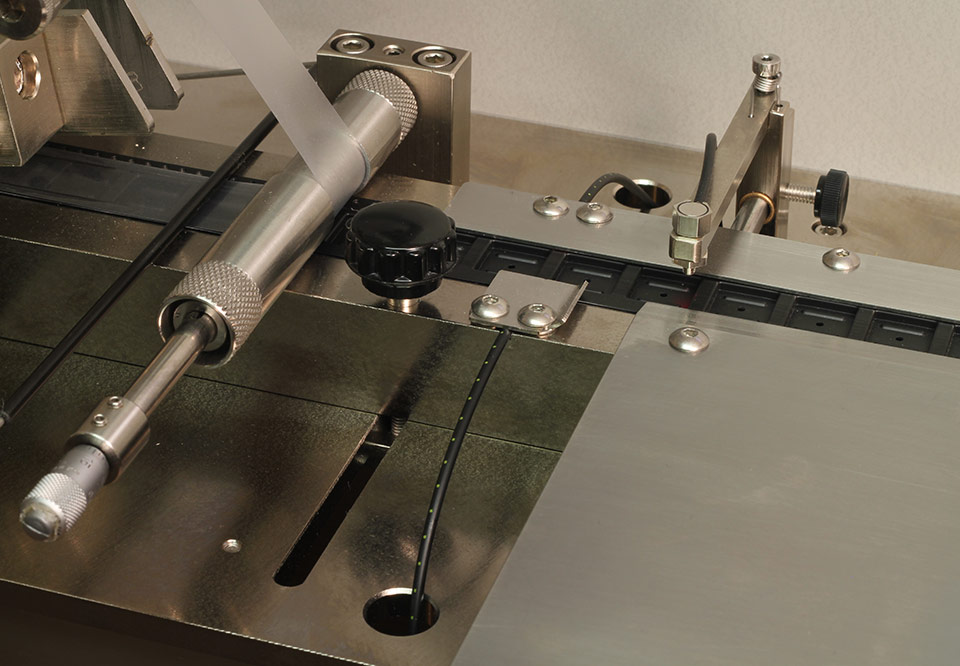

Unique, quick change cover tape guide for easy change of tape sizes. No need for additional tooling.
Unique, quick change cover tape guide for easy change of tape sizes. No need for additional tooling.

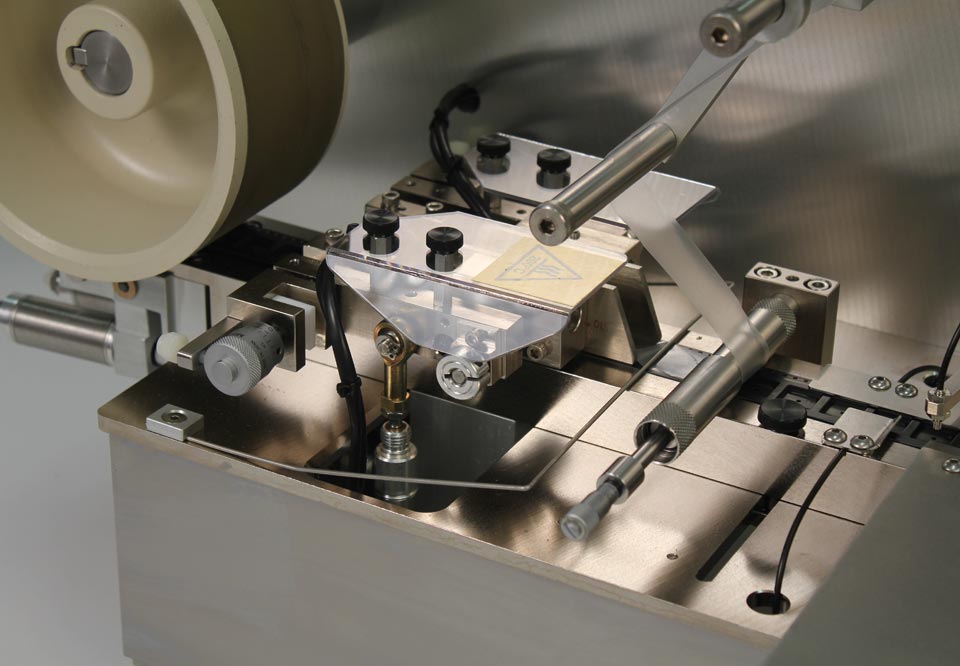

Tape Sealing Section
Tape Sealing Section

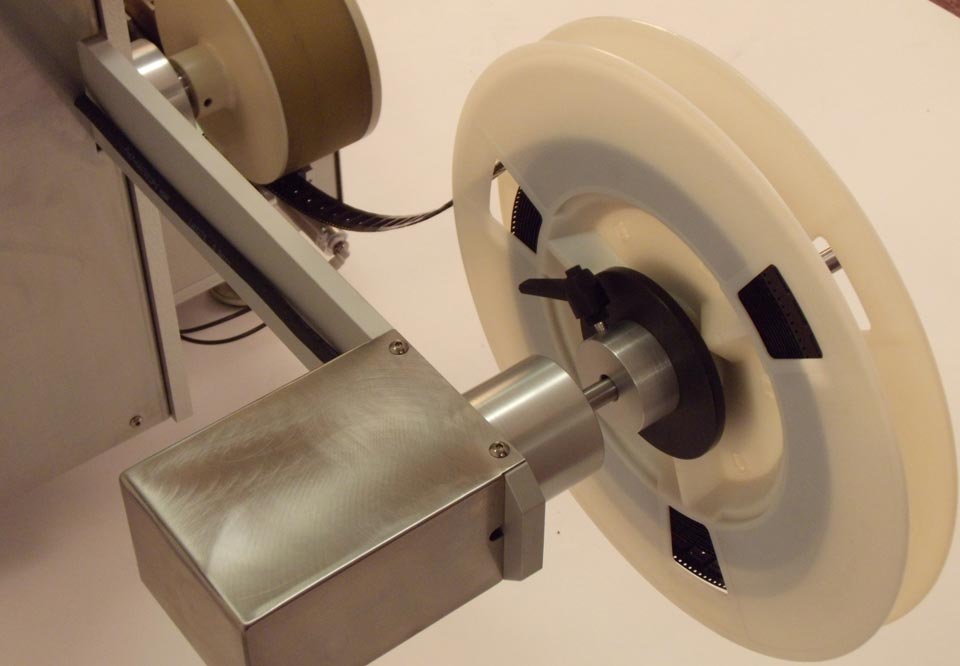

Motorized Output Reel
Motorized Output Reel

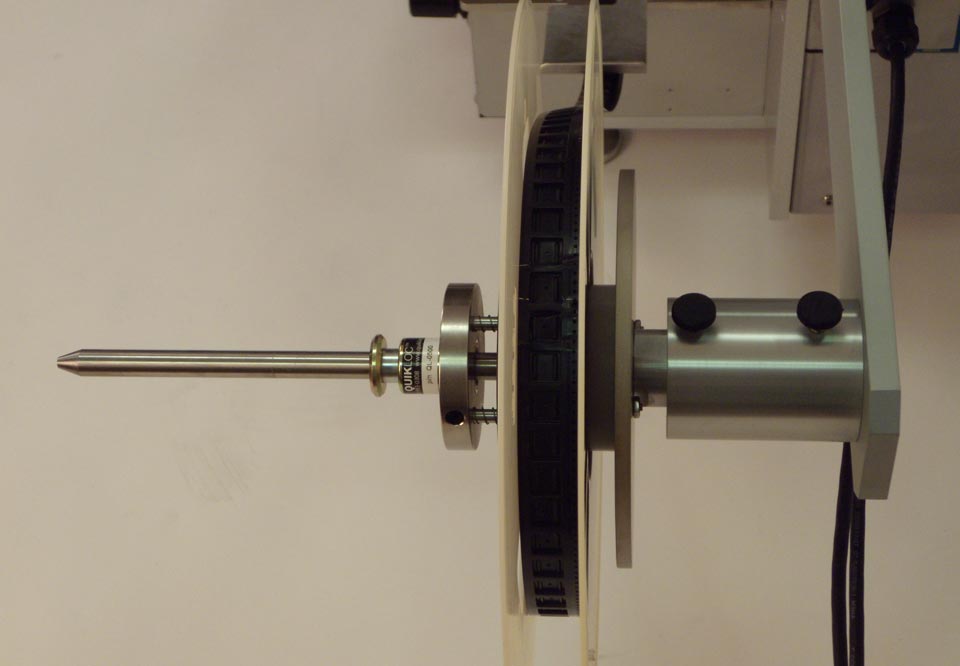

Input Reel and Spindle
Input Reel and Spindle

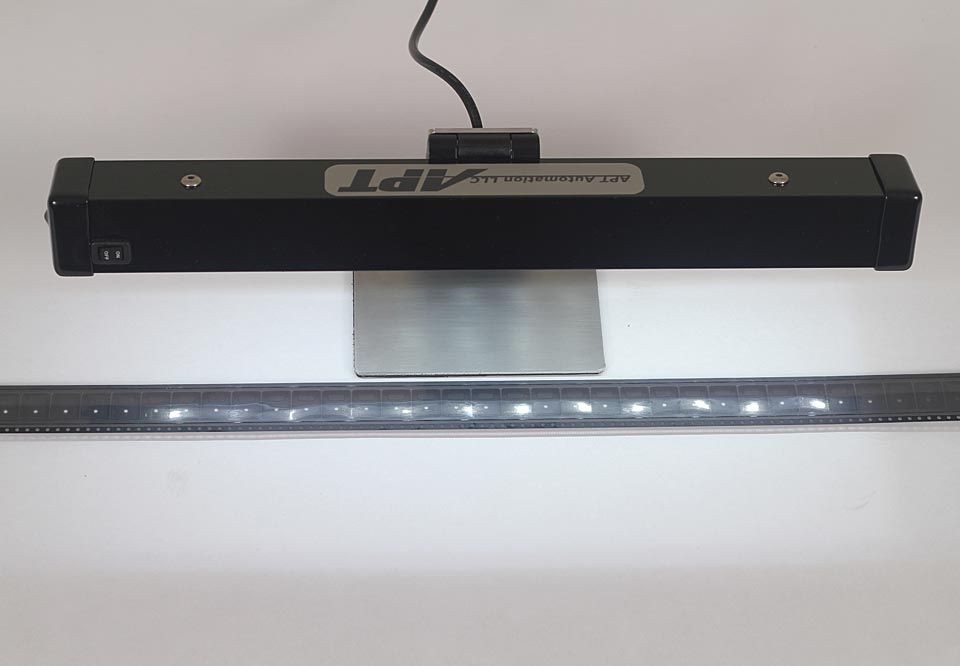

TL-10 Task Light
TL-10 Task Light
